  • June 16, 2019 at 2:19 pm #11784
    hl1oap
    Participant

    Hello,

    I am going through instructions in the book, and faced an issue at the early stage : example in chapter 5.2.1

    I believe I followed all the instructions in the chapter regarding the ARM semihosting.
    When I build the project and run the debug, the console output does not show the ‘Hello STM32 lovers!’ message like the Figure 18 in the book, but it stops at the sequence number ’39’ as follows;

    I got a feeling that the compiled binary image was not actually downloaded to the target board because;
    1. The eclipse (in the debug perspective) does not show the source code. It is supposed to run up to the main function and halt at main.
    2. The board is running the previous code I flashed before, even when the eclipse saids the Thread of new binary is Running.

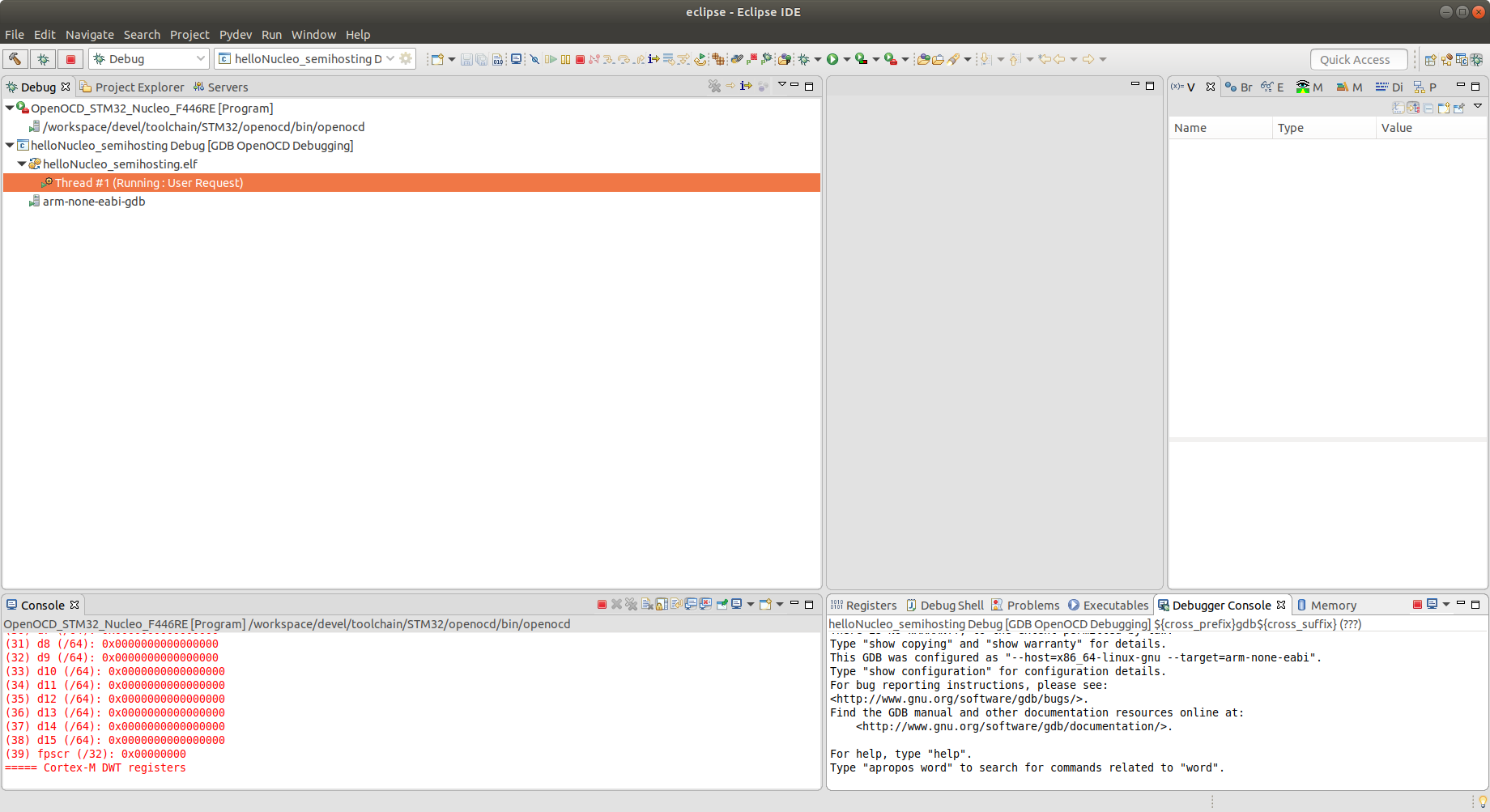

    I attached the entire project file and screenshot of the eclipse when I ran the project.

    For your information,
    – OS : Ubuntu 18.04 with kernel version 4.15.0-51-generic
    – Eclipse version : 2019-03 (4.11.0) (build ID 20190314-1200)

    If there is anybody having a clue on this issue, please help me. 🙂

    Regards,

    Arnold.

    STM32_Nucleo-F446RE_Eclipse

    • This topic was modified 5 years, 6 months ago by hl1oap.
    • This topic was modified 5 years, 6 months ago by hl1oap.
    Attachments:
    You must be logged in to view attached files.
    June 16, 2019 at 2:22 pm #11790
    hl1oap
    Participant

    My project file cannot be uploaded.
    Let me try with this following up post.

    p.s.
    It keeps making upload errors. I don’t know why. 🙁

    • This reply was modified 5 years, 6 months ago by hl1oap.
    October 18, 2019 at 11:49 pm #12272
    madmax
    Participant

    I am having the exact same issue.. Did you manage to resolve it ? Any help would be appreciated

    Thanks in advance !!

    This is how the output from the opnocd looks like

    xPack OpenOCD, 64-bit Open On-Chip Debugger 0.10.0+dev (2019-07-17-11:28)
    Licensed under GNU GPL v2
    For bug reports, read
    http://openocd.org/doc/doxygen/bugs.html
    Info : The selected transport took over low-level target control. The results might differ compared to plain JTAG/SWD
    srst_only separate srst_nogate srst_open_drain connect_deassert_srst

    Info : Listening on port 6666 for tcl connections
    Info : Listening on port 4444 for telnet connections
    Info : clock speed 1000 kHz
    Info : STLINK V2J33S0 (API v2) VID:PID 0483:3748
    Info : Target voltage: 2.888208
    Info : stm32f3x.cpu: hardware has 6 breakpoints, 4 watchpoints
    Info : Listening on port 3333 for gdb connections
    Info : accepting ‘gdb’ connection on tcp/3333
    Info : device id = 0x10036422
    Info : flash size = 256kbytes
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    target halted due to debug-request, current mode: Thread
    xPSR: 00000000 pc: 0xfe32f000 msp: 0xb083b500
    Info : Unable to match requested speed 8000 kHz, using 4000 kHz
    Info : Unable to match requested speed 8000 kHz, using 4000 kHz
    semihosting is enabled

    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    target halted due to debug-request, current mode: Thread
    xPSR: 00000000 pc: 0xfe32f000 msp: 0xb083b500, semihosting
    Info : Unable to match requested speed 8000 kHz, using 4000 kHz
    Info : Unable to match requested speed 8000 kHz, using 4000 kHz
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    target halted due to debug-request, current mode: Thread
    xPSR: 00000000 pc: 0xfe32f000 msp: 0xb083b500, semihosting
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    Info : Unable to match requested speed 1000 kHz, using 950 kHz
    target halted due to debug-request, current mode: Thread
    xPSR: 00000000 pc: 0xfe32f000 msp: 0xb083b500, semihosting
    ===== arm v7m registers
    (0) r0 (/32): 0x00000000
    (1) r1 (/32): 0x00000000
    (2) r2 (/32): 0x00000000
    (3) r3 (/32): 0x00000000
    (4) r4 (/32): 0x00000000
    (5) r5 (/32): 0x00000000
    (6) r6 (/32): 0x00000000
    (7) r7 (/32): 0x00000000
    (8) r8 (/32): 0x00000000
    (9) r9 (/32): 0x00000000
    (10) r10 (/32): 0x00000000
    (11) r11 (/32): 0x00000000
    (12) r12 (/32): 0x00000000
    (13) sp (/32): 0xB083B500
    (14) lr (/32): 0xFFFFFFFF
    (15) pc (/32): 0xFE32F000
    (16) xPSR (/32): 0x00000000
    (17) msp (/32): 0xB083B500
    (18) psp (/32): 0x00000000
    (19) primask (/1): 0x00
    (20) basepri (/8): 0x00
    (21) faultmask (/1): 0x00
    (22) control (/2): 0x00
    (23) d0 (/64): 0x0000000000000000
    (24) d1 (/64): 0x0000000000000000
    (25) d2 (/64): 0x0000000000000000
    (26) d3 (/64): 0x0000000000000000
    (27) d4 (/64): 0x0000000000000000
    (28) d5 (/64): 0x0000000000000000
    (29) d6 (/64): 0x0000000000000000
    (30) d7 (/64): 0x0000000000000000
    (31) d8 (/64): 0x0000000000000000
    (32) d9 (/64): 0x0000000000000000
    (33) d10 (/64): 0x0000000000000000
    (34) d11 (/64): 0x0000000000000000
    (35) d12 (/64): 0x0000000000000000
    (36) d13 (/64): 0x0000000000000000
    (37) d14 (/64): 0x0000000000000000
    (38) d15 (/64): 0x0000000000000000
    (39) fpscr (/32): 0x00000000
    ===== Cortex-M DWT registers

    • This reply was modified 5 years, 2 months ago by madmax.
